一、、概述Introduction

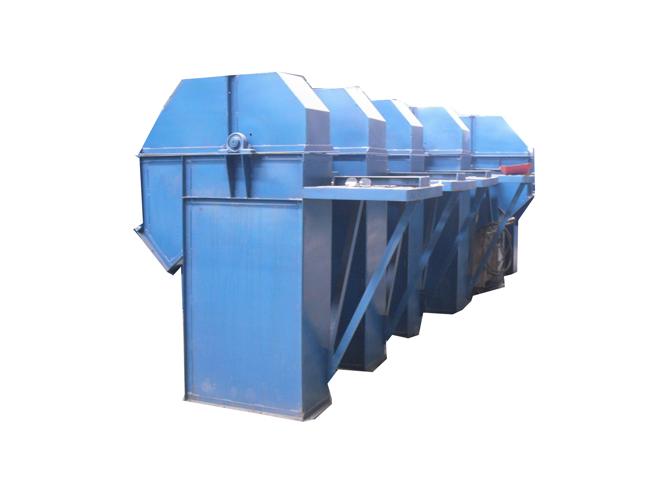

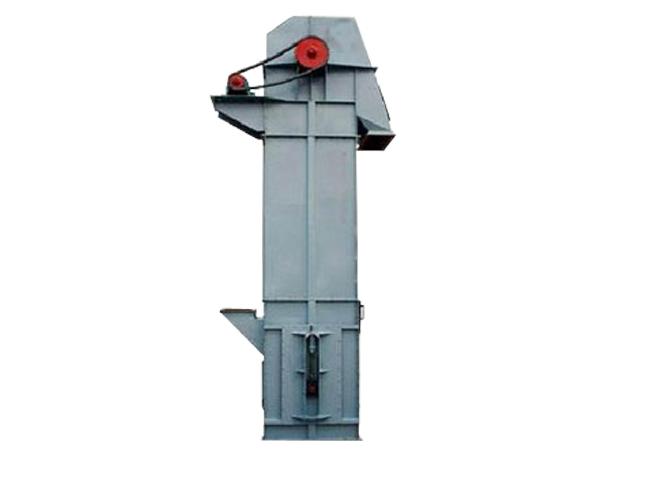

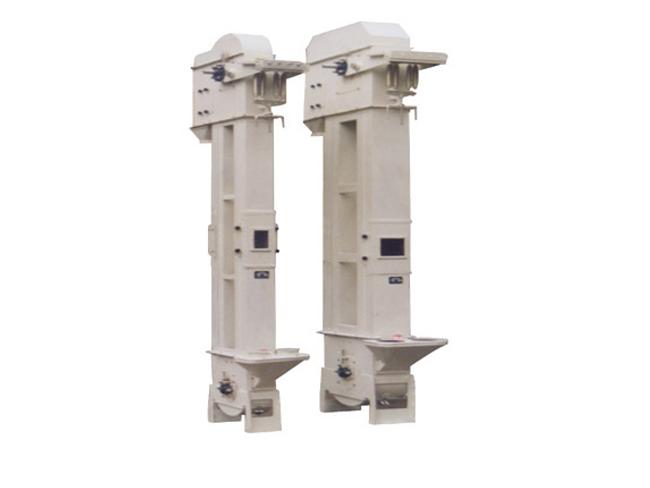

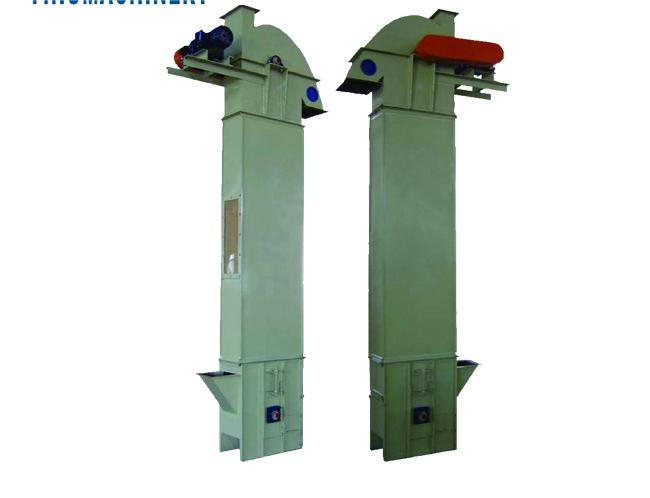

斗式提升机是TD和TH斗式提升机的改进版。。凭据市场需要，，在维持原有优势和先进机能的基础上，，推出新一代GTD和GTH斗式提升机。。 并出产。。 该设备有两种料斗：：深桶，，通常合用于输送干燥，，疏松，，易丢，，流动性好的物料，，如水泥，，煤炭，，碎石，，粮食等物料; zh浅桶，，合用于流动性差，，砂，，煤，，化工原料等略湿的物料。。
High-efficiency bucket elevator is an improved version of the TD and TH bucket elevators.According to the market demand,based on the maintenance of the original advantages and advanced performance, the new generation of GTD and GTH high-efficiency bucket elevators have been introduced and produced. The equipment has two kinds of hoppers: sh deep bucket, generally suitable for conveying dry, loose, easy to throw, good fluidity materials, such as cement, coal, gravel, grain and other materials; zh shallow bucket, it is suitable for Poor fluidity, slightly wet materials such as sand, coal, chemical raw materials, etc.
二、、利用领域Applied field
GTD和GTH型斗式提升机拥有产量高，，高度高，，运行安稳，，使用寿命长的特点。�？？？煽矸豪糜诮ú�，，化工，，煤炭，，电力，，港口运输等物资运输系统。。
GTD and GTH high-efficiency bucket elevators feature high output, high height, stable operation and long service life. Can be widely used in building materials, chemicals, coal, electricity, port transportation and other material transportation systems.
三、、技术参数Technical parameters
parameter table of high-efficiency bucket elevator is listed as two kinds: 配置分歧的料斗，，其输送能力分歧，，故将斗式提升机技术参数表列为两种：：
（Sh type Bucket）Technical parameters TDG型斗提机（配用sh型料斗） 技术参数
Model | TDG160 | TDG200 | TDG250 | TDG315 | TDG400 | TDG500 | TDG630 |
输送量capacity，，m3/h | 32 | 45 | 72 | 101 | 158 | 220 | 348 |
料斗容量Bucket volume，，L | 2.6 | 4.1 | 6.5 | 10 | 16 | 25 | 40 |
料斗间距bucket Spacing，，mm | 260 | 300 | 325 | 360 | 420 | 460 | 520 |
料斗运行速度bucket Speed，，m/s | 1.2 | 1.2 | 1.34 | 1.34 | 1.5 | 1.5 | 1.5 |
提升高度Lifting Height，，m | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
（Zh type Bucket）Technical parameters TDG型斗提机（配用zh型料斗） 技术参数
Model | TDG160 | TDG200 | TDG250 | TDG315 | TDG400 | TDG500 | TDG630 |
输送量capacity，，m3/h | 24 | 31 | 51 | 74 | 118 | 167 | 253 |
料斗容量Bucket volume，，L | 1.9 | 2.9 | 4.5 | 7.4 | 12 | 19 | 29 |
料斗间距bucket Spacing，，mm | 260 | 300 | 325 | 360 | 420 | 460 | 520 |
料斗运行速度bucket Speed，，m/s | 1.2 | 1.2 | 1.34 | 1.34 | 1.5 | 1.5 | 1.5 |
提升高度Lifting Height，，m | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
